Mini Mast Light
High Mast Light

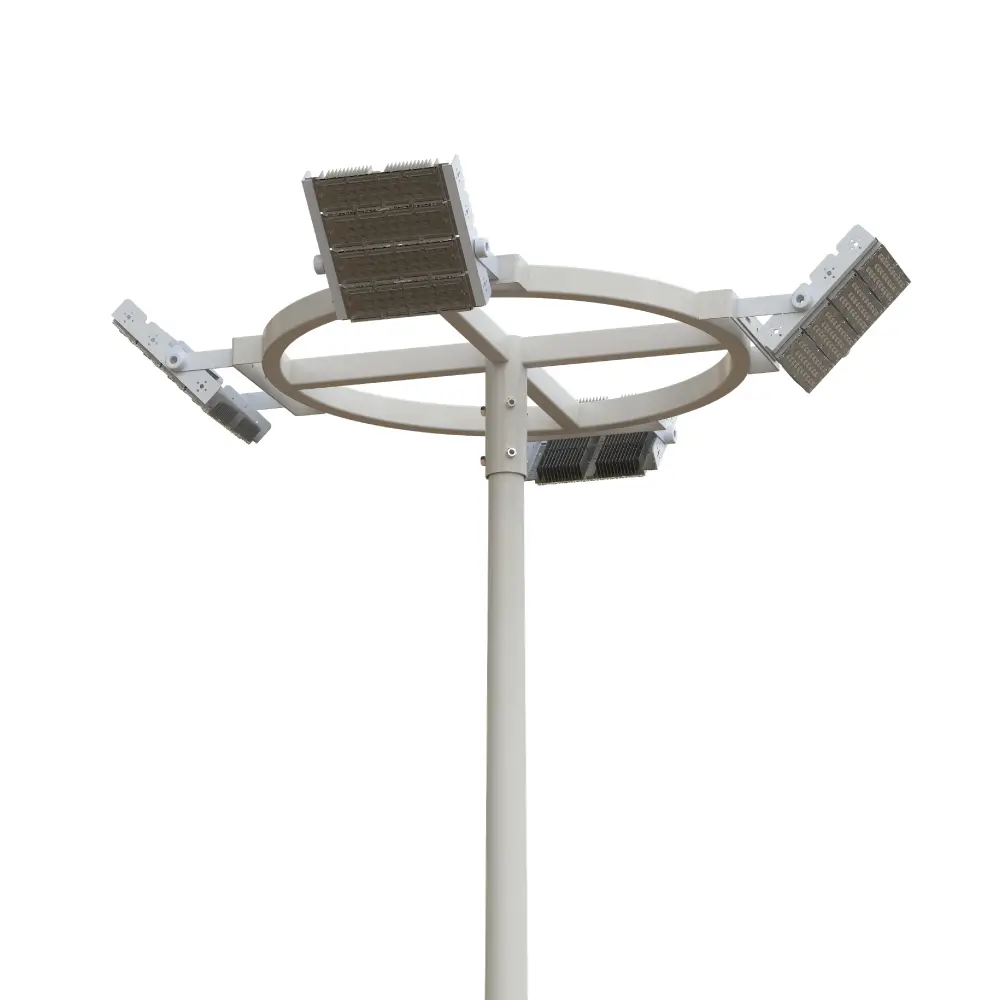

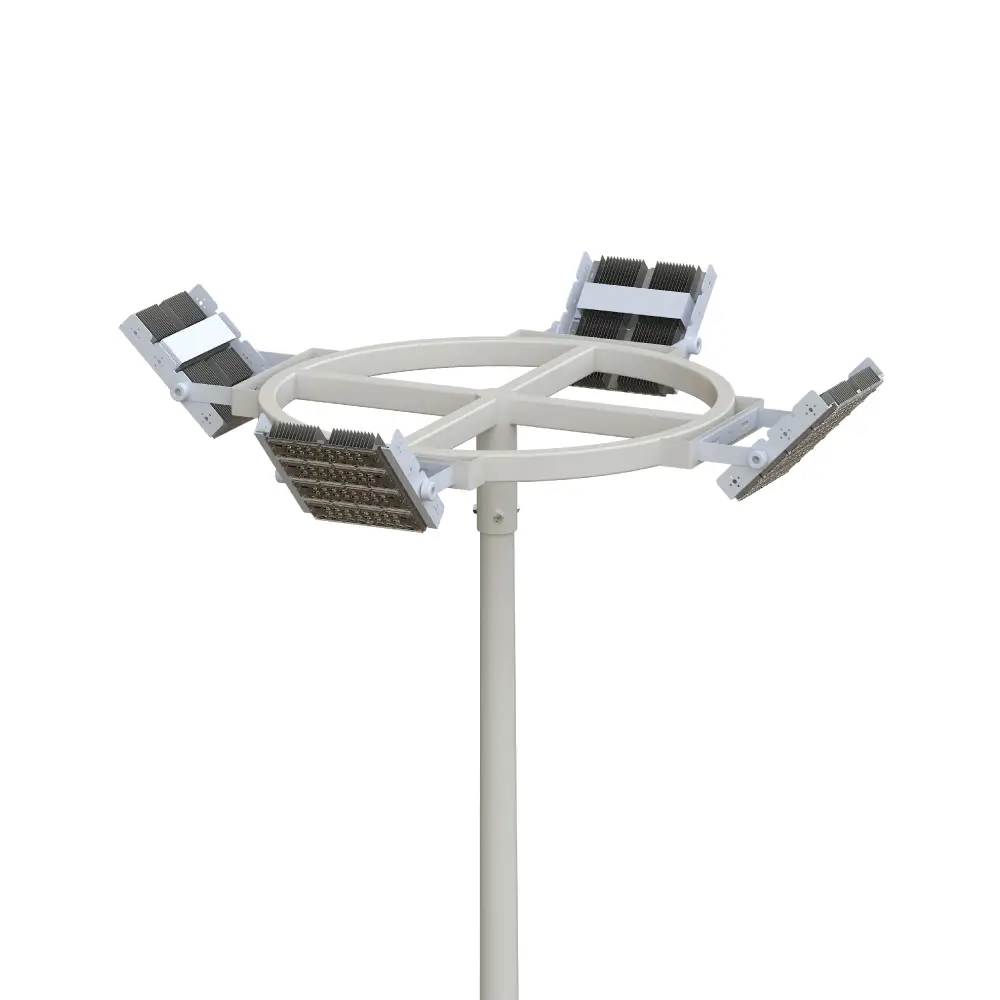

Mini mast lights are typically mounted on poles that are 10 to 12 meters tall with multiple light fixtures, for transportation, storage and pedestrian safety. The lighting typically consists of a ring surrounding the pole with the light fixtures mounted around it
Applications：
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
| Lamp Power | 100W-400W Per Lamp |
| Lamp Qty | 1-8 sets |
| Working Voltage | 90 - 305V AC, 50/60Hz |
| Beam Angle | 8°,20°,30°,40°,60°,90°,100°,120° |
| CCT | 3000k-6500k |
| CRI | >70 (>80,>90 optional) |
| LED Chip | SMD 3030 / SMD 5050 |
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) |
| Polygonal Mast Pole Height | 8-15 Meters |
| Polygonal Mast Pole Material | Q345b/A572, Q235b/A36 |
| Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode |
| Raising & Lowering System | Optional |
| Wind Resistance Capacity | >160km/h |
| System Life Time | >10 Years |
| IP/IK Rate | Ip65 / IK09 |
| Working Temperature | -40°C~50°C, 20%~90% RH |
| Accessories | Foundation Kits, Lighting Rod, Climbing Ladder, Rain Cover |

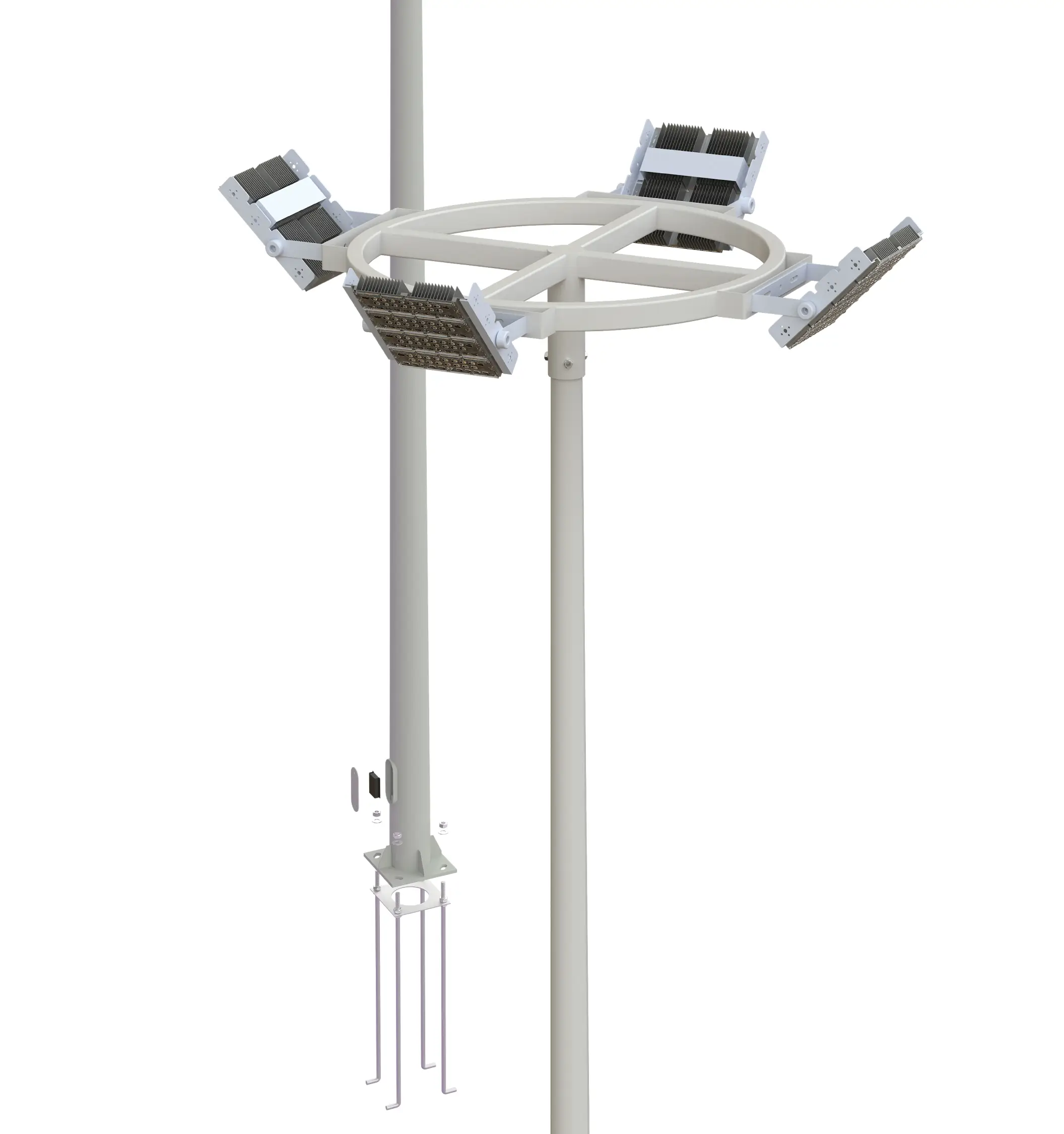

Interior Structure
Optional Functions
01
Motion Sensor
1
02
Adjustable Solar Panel Bracket
2
03
Anti-theft Components
3
04
Anti-bird Spike
4
05
Camera
5
