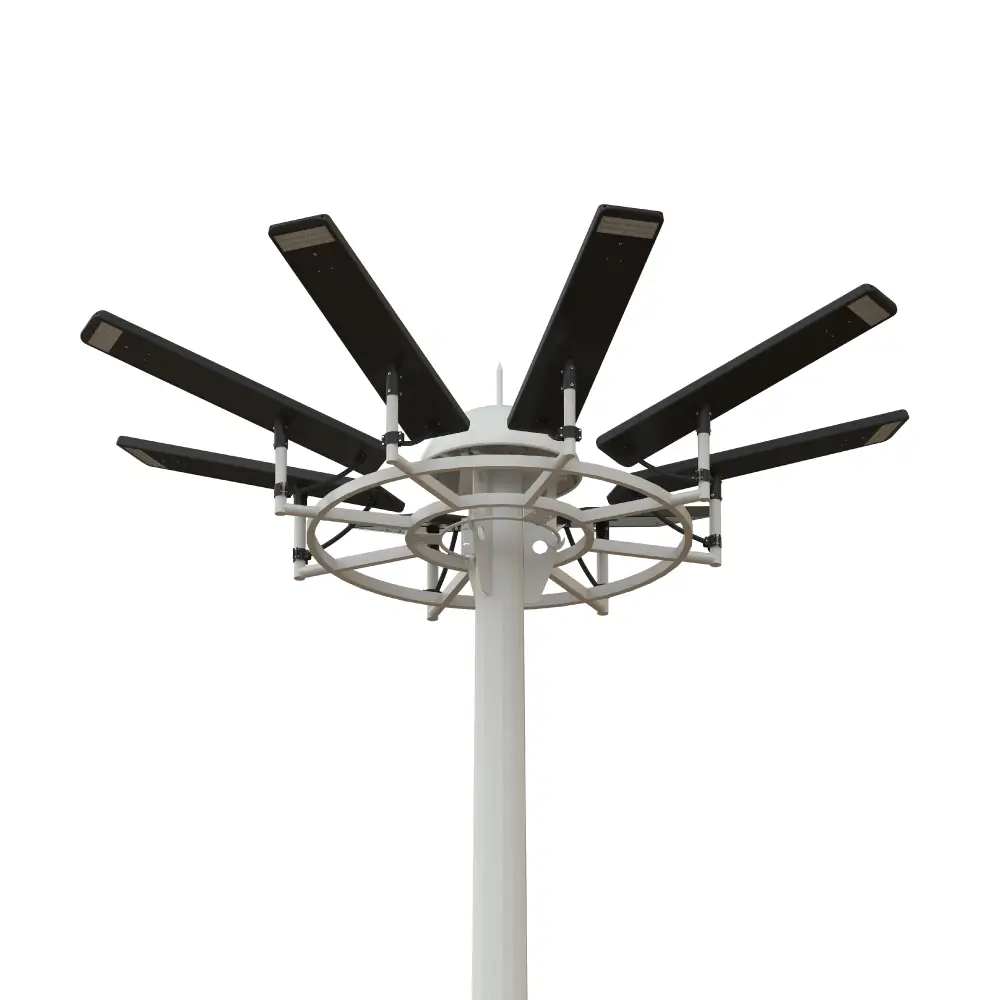

Integrated Solar Mast Light
Solar Hight Mast Light
Mini mast lights are typically mounted on poles that are 10 to 12 meters tall with multiple light fixtures, for transportation, storage and pedestrian safety. The lighting typically consists of a ring surrounding the pole with the light fixtures mounted around it
Applications：
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
| All-In-One Solar Light | LED Power per Lamp | 100-160W |
| Solar Panel Capacity | Customziable | |
| Lithium Battery Capacity | Customziable | |
| Lamp Qty | Customziable | |
| Luminous Efficiency | >175lm/w (SMD 5050) | |
| Color Temperature | 3000K - 6500K | |
| Beam Angle | 30°,60°,90°,120° | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC + tempered glass | |
| Mast Pole | Pole Height | 15-30 Meters |
| Section Shape | Polygonal | |
| Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode | |
| Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
| Raising & Lowering System | OPTIONAL | |
| Climbing Ladder | OPTIONAL | |
| Working Time | From dusk to dawn (customizable) | |
| Autonomy Days Backup | 365day non-stop operation (customizable) | |
| Accessories | Foundation Kits, Lighting Rod and Rain Cover | |
| System | Working Temperature | -20 - 65℃ |
| Protection Levels | IP65 - IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | All-In-One Solar Light: > 10years | |
| Mast Pole: > 30years | ||
| Warranty | 3 / 5 years | |

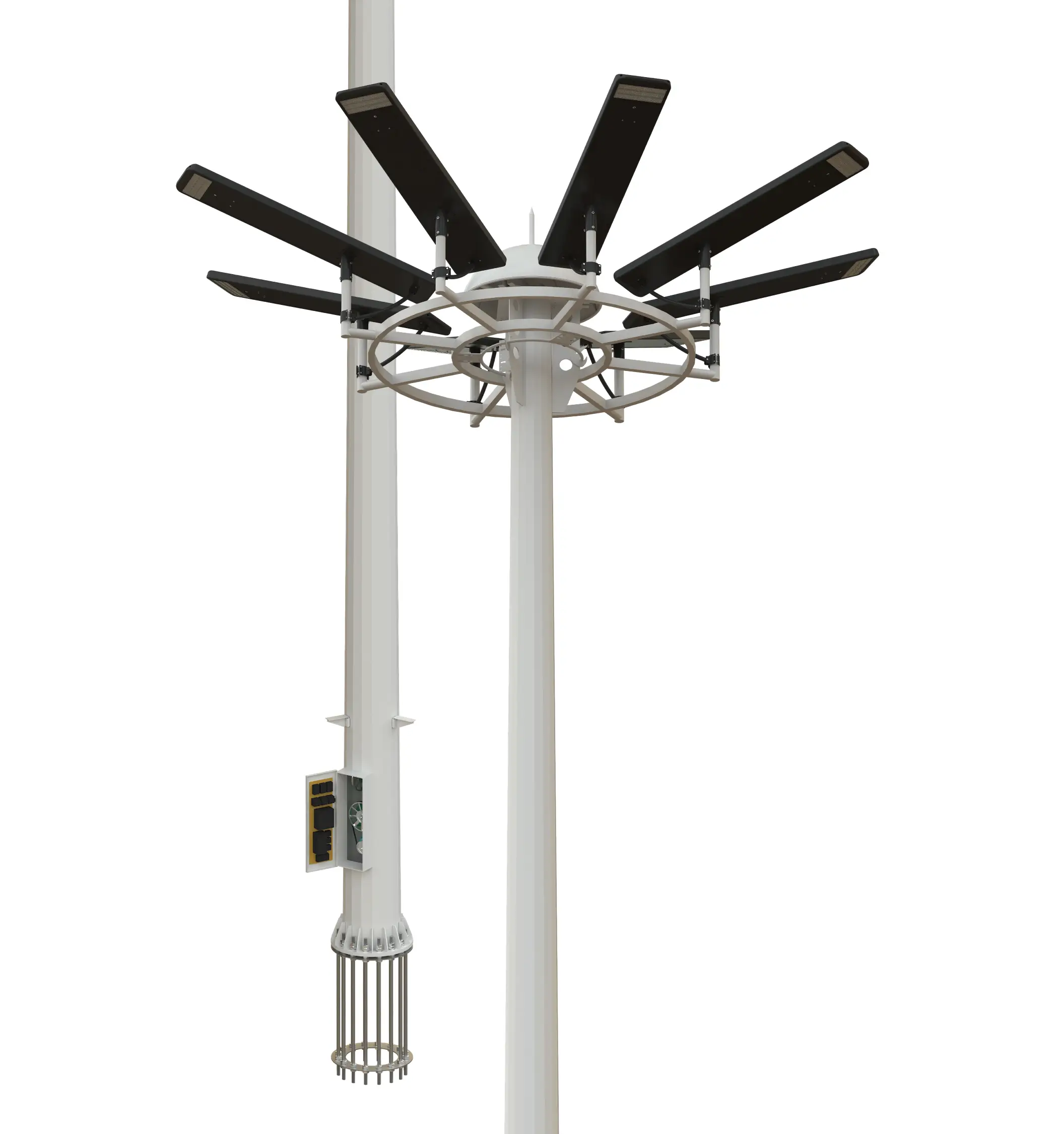

Interior Structure
Optional Functions
01
Lightning arrester
1
02
LED Aviation light
2
03
Camera
3
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, INLUX’s IOT Smart Monitoringl System enables intelligent management of our solar street lights by PC, PAD and Mobile.
GPS Map
Failure Warning
Historical Data Record
Remote Management of Lighting Modes
Authority Management
Remote ON/OFF Switch
Working Condition Monitoring
See JAGUAR’s Performance Across These Projects
Jaguar applied in Egypt's highway lighting project
Jaguar applied in Ethiopia's farm lighting project
Jaguar applied in South Africa's rural road lighting project
Jaguar applied in Syria's urban lighting project
Jaguar applied in Industrial zone lighting project
