Portfolios: Alien (AIO5)
Add Your Heading Text Here
Applications：
- Highway
- street
- pathway
- intersection
- roundabout
- parking lot
Specifications
Lamp Power | 30-150W | Product Dimension | 720*340*135mm |
Popolar Power | 120W-150W | Package Dimension | 780*387*187mm |
Luminous Efficiency | >180lm/w | Protection Levels | IP66 / IK09 |
LiFeP04 Lithium Battery Capacity | Maximum 62AH/25.6V (1590WH) | Suggested Pole Mounting Height | 5 – 12 meters (customizable) |
Solar Controller (PWM/MPPT) | 10A /15A / 20A (customizable) | Working Temperature | -20 - 65℃ |
Solar Panel Capacity | 60W - 720W (customizable) | System Life Span | 10 years |
Lamp Fixture Material | Die-casting Aluminum | Warranty | 3 – 5 years |
Lamp Adaptor | 60mm diameter | Optional Functions | motion sensor / IoT smart control system |

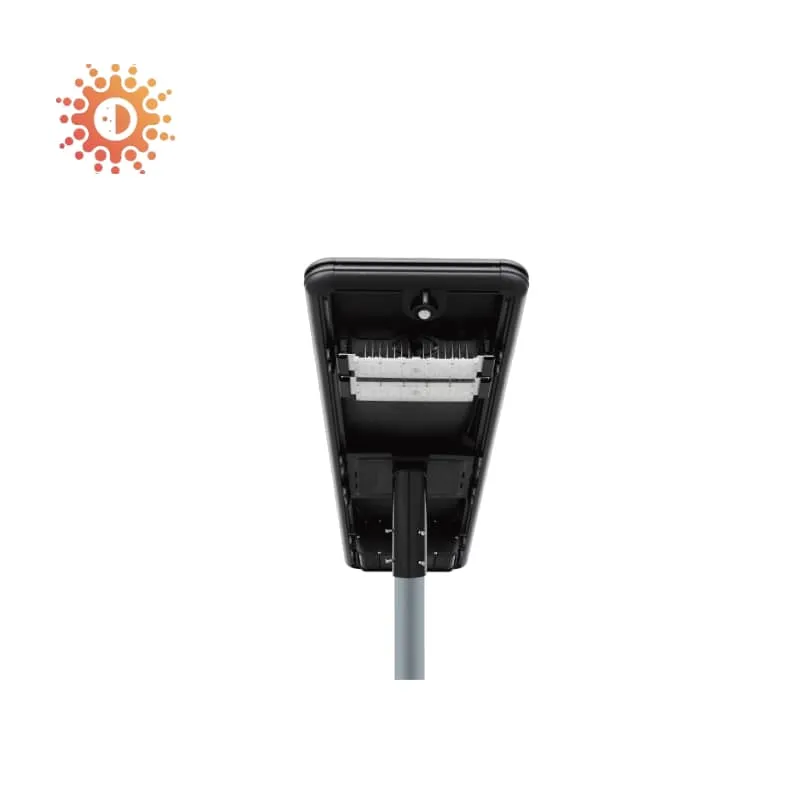

Interior Structure
PIR Motion Sensor(Optional)
Brightness will dim to 30% (optional)during periods of inactivity, and return to 100% when presence is detected.
IP67 Extreme Bright LED Modules
200lm/w Extreme bright 5050 LEDchips, Easy Maintenance
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
LiFePO4 Lithium Battery
More than 10 years lifespan, perfect high temperature & safety performance
Enhanced Strong Lamp Holder
IP66 protection sealed by waterproofring lk09 impact protection
Plug & Play Design
How JAGUAR Benefits Your Project
Independent Solar Panel Design Provides Higher Solar Power
First-Class Lighting Output Provides 40% Higher Brightness, Covering 30% Larger Area
Type Ⅱ Patented Lighting Distribution
Over 10 Years of Lifetime
- high-quality LifePO4 battery, and configuration design with low DoD (depth of discharge), which ensures over 4000 times of cycle life (over 10 years)
- international top electronic components withlow-current system design ensure over 10 years ofservice life even under severe operation environ-ment
- international top electronic components withlow-current system design ensure over 10 years ofservice life even under severe operation environ-ment
Anti-Theft
Faster Installation
Optional Functions
#01
Anti-theft Components
1
#02
Adjustable Battery Panel Angle
2
#03
Motion Sensor
3
#04
Camera
4
loT Module
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
Pole Designs
Installation Methods
Installation Procedures
Product Videos
See JAGUAR’s Performance Across These Projects
