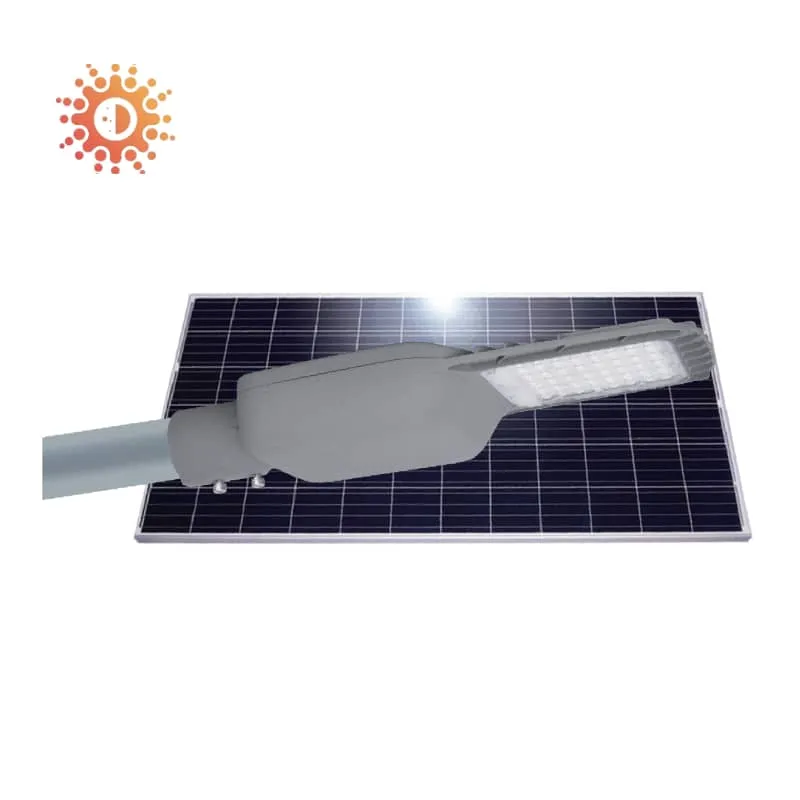

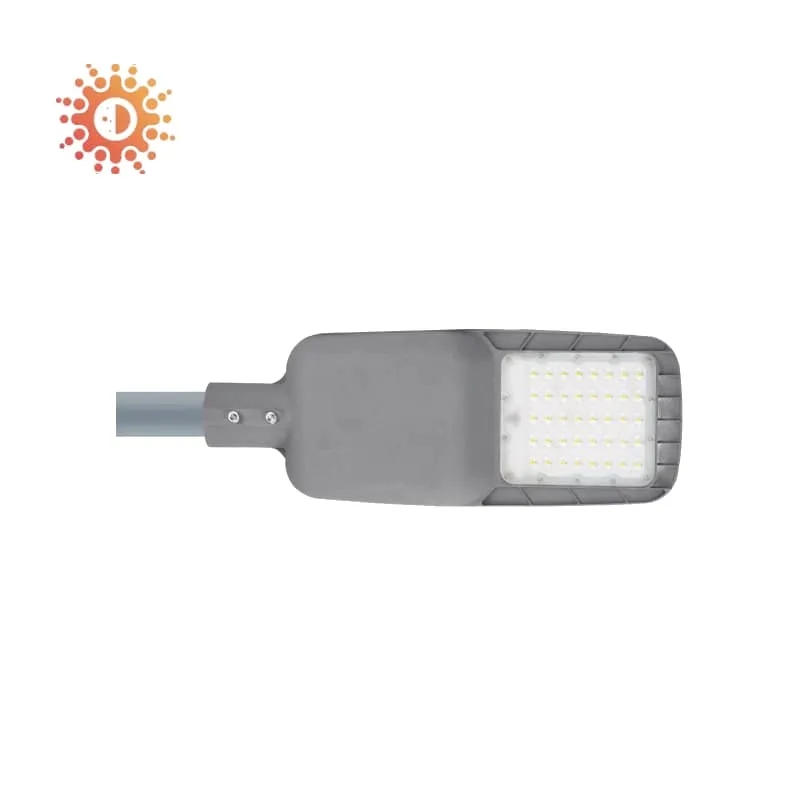

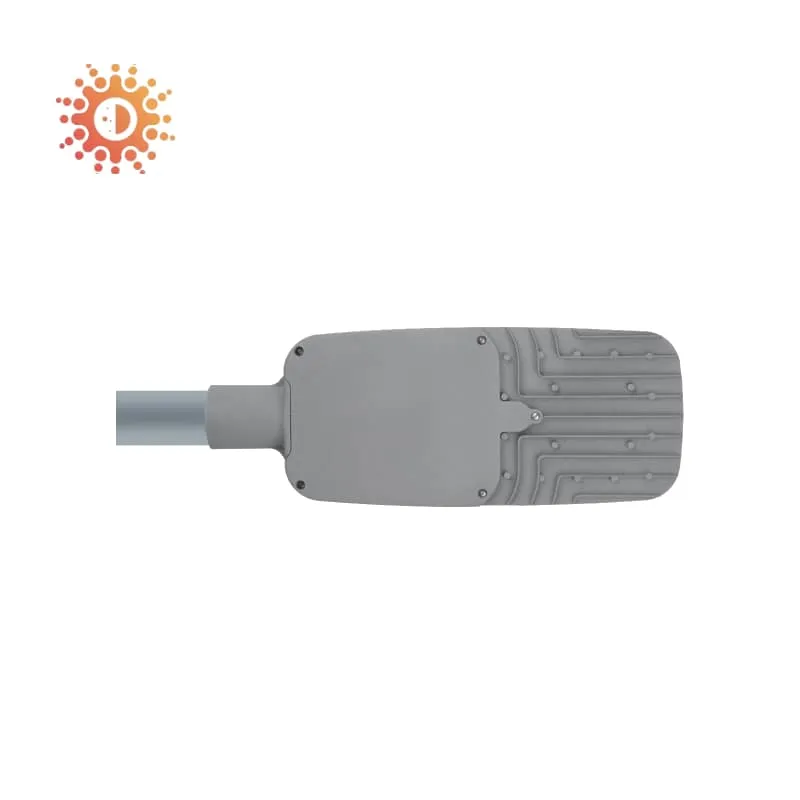

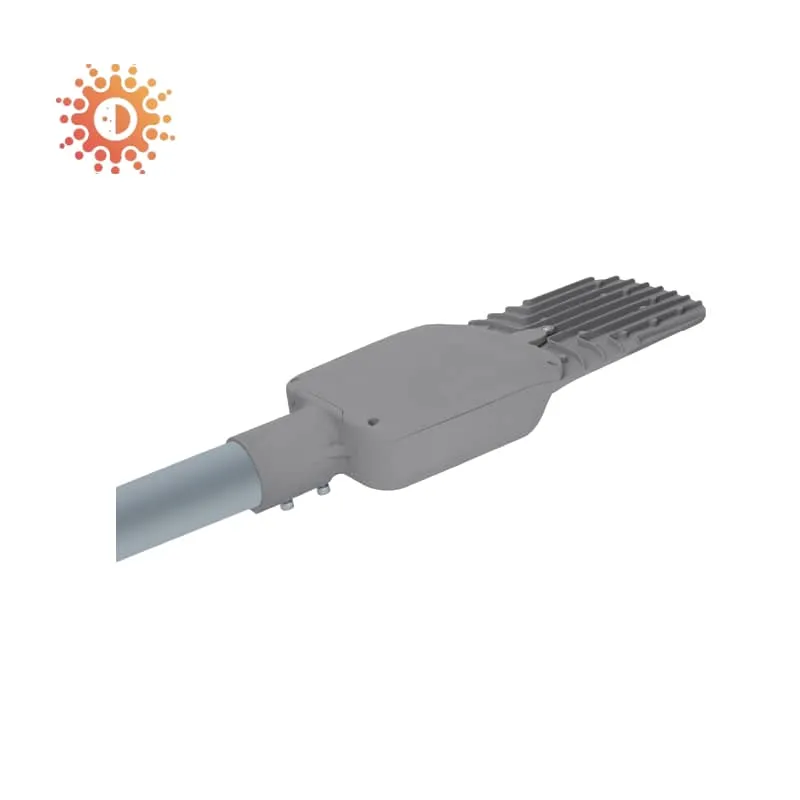

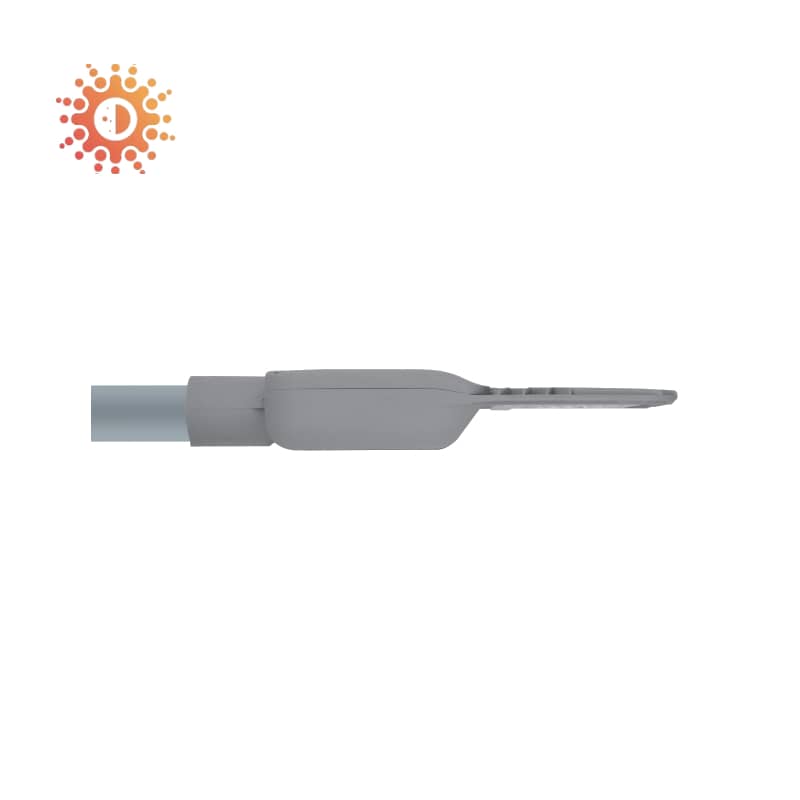

The JAGUAR series is an All-In-Two solar street light designed for large LED output applications, with the largest built-in lithium battery capacity and the highest luminous flux on the market. The system integrates a first-class ultra-bright 5050 SMD LED module lighting source, a 10-year durable LiFePO4 lithium battery, an intelligent solar controller, and a high-efficiency solar panel. The lamp fixture looks like a “leaping jaguar,” solid and powerful, with strong visual impact, and is a collection of advanced technology and technological aesthetics. In addition, the system can also be equipped with optional accessories such as a motion sensor, CCTV camera, and intelligent monitoring system.
Applications：
- Highway
- street
- pathway
- intersection
- roundabout
- parking lot
Specifications
Lamp Power | 30-150W | Product Dimension | 720*340*135mm |
Popolar Power | 120W-150W | Package Dimension | 780*387*187mm |
Luminous Efficiency | >180lm/w | Protection Levels | IP66 / IK09 |
LiFeP04 Lithium Battery Capacity | Maximum 62AH/25.6V (1590WH) | Suggested Pole Mounting Height | 5 – 12 meters (customizable) |
Solar Controller (PWM/MPPT) | 10A /15A / 20A (customizable) | Working Temperature | -20 - 65℃ |
Solar Panel Capacity | 60W - 720W (customizable) | System Life Span | 10 years |
Lamp Fixture Material | Die-casting Aluminum | Warranty | 3 – 5 years |
Lamp Adaptor | 60mm diameter | Optional Functions | motion sensor / IoT smart control system |
Interior Structure
PIR Motion Sensor(Optional)
IP67 Extreme Bright LED Modules
Smart Controller
LiFePO4 Lithium Battery
Enhanced Strong Lamp Holder
Plug & Play Design
How to Choose the Right
All-In-Two Solar Street Light for Your Project?
Choosing the right solar street light with the appropriate brightness and coverage is crucial for different application scenarios. Explore the Inlux Solar All-In-Two Solar Street Light
series comparison here,and find the perfect solution for your needs.
| Jaguar | Falcon | Bison | |
| Image | |||
| Power Range | |||
| Battery Capacity | |||
| Lighting Duration | |||
| Application | |||
| Installation |
How JAGUAR Benefits Your Project
Independent Solar Panel Design Provides Higher Solar Power
Independent solar panel design makes high-power panels possible, and 15% higher charging efficiency can be realized by adjusting direction of solar panel. Therefore, high-power LED lamps are able to operate at high brightness all night.
First-Class Lighting Output Provides 40% Higher Brightness, Covering 30% Larger Area
Jaguar Series provides first-class lighting output solution, which means higher brightness, bigger illumination area and better uniformity.
Type Ⅱ Patented Lighting Distribution
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
Over 10 Years of Lifetime
- high-quality LifePO4 battery, and configuration design with low DoD (depth of discharge), which ensures over 4000 times of cycle life (over 10 years)
- international top electronic components withlow-current system design ensure over 10 years ofservice life even under severe operation environ-ment
- international top electronic components withlow-current system design ensure over 10 years ofservice life even under severe operation environ-ment
Anti-Theft
Built-in controller & lithium battery, which are invisible from outside, together with anti-theft screws, have greatly improved guard against theft.
Faster Installation
The intelligent integrated design simplifies installation remarkably by saving cable connections
Optional Functions
#01
Anti-theft Components
1
#02
Adjustable Battery Panel Angle
2
#03
Motion Sensor
3
#04
Camera
4
loT Module
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
Smart Controller
High efficiency, smart power savingmode, lP68 Constant current working,greatly reduce light Failure rate.multiple protections that well protect battery
Pole Designs
Our All-In-Two solar street lights can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
Add Your Heading Text
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Installation Methods
Our All-In-Two solar street lights offer multiple installation options. Whether on roads, walls, fences, or other locations, we provide stable and reliable mounting solutions tailored to your needs.
Installation Procedures
Check out our installation guide. If you encounter any issues, feel free to contact us. We offer online installation support and, when necessary, our technicians can provide on-site assistance.
Play Video
Play Video
Product Videos
View more details and installation guide about this street light.
Play Video
Play Video
Play Video
Play Video
See JAGUAR’s Performance Across These Projects
Jaguar applied in Egypt's highway lighting project
Jaguar applied in Ethiopia's farm lighting project
Jaguar applied in South Africa's rural road lighting project
Jaguar applied in Syria's urban lighting project
Jaguar applied in Industrial zone lighting project
